Barcode and QR Code

This question type is available for the App-based products - AskMe and CAPI - and is intended to be used on a device with a camera. Note that it is only available when a responsive rendering layout is used. Users may for example need to conduct an audit of brands in a store, and this question type records and interprets barcodes and QR codes.

The question details page for this item - allows you to set the input box size. The properties available for this question type are described in the Question Properties documentation (go to Accessing Question Properties for more information).

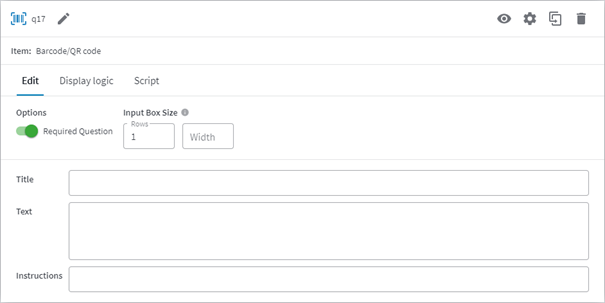

Figure 1 - The Barcode/QR code item’s question details page

The question will result in an open text question with whatever the code is; a URL, a string or a series of digits, presented as the answer.

To use the question:

1. The respondent or user opens the question and taps the icon.

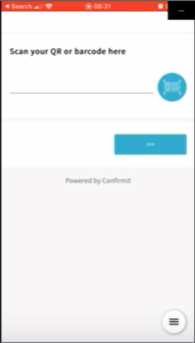

Figure 2 - The barcode/QR code question as the respondent sees it

This loads the camera.



Figure 3 - The camera is loaded

2. The user moves the camera over the QR code or barcode, and when the camera recognizes the code it takes a snap.



Figure 4 - The barcode or QR code is recognized and snapped

3. The code is interpreted and the content, in this example a URL, is added and stored as the answer to the question.

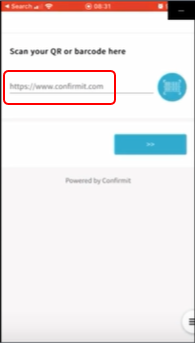

Figure 5 - The code is interpreted

In the event the user is not satisfied with the result, he/she can re-tap on the icon and take a new recording. The user can also enter a value manually if required. You can set a property in the question's property sheet to prevent the user from being able to input a value manually.
